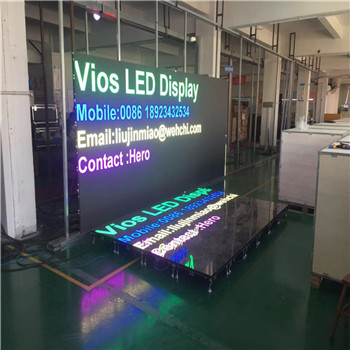

P2.5 Ultra Thin Indoor Full Color LED Video Wall Panels For Advertising , 1R1G1B

Product Details:

Place of Origin: China
Brand Name: Mega
Certification: L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA
Model Number: PH2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: Negotiation
Packaging Details: Wooden box or Flight case
Delivery Time: 4-6 work days
Payment Terms: L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA
Supply Ability: 6,000 square meters per month

Detailed Product Description
Driving Method: 1 / 16 Scan Module Size: 160mm X 160mm
Viewing Distance: 2~20m Pixel Density: 160000 Dot / M2
Cabinet Size: Customized Pixel Composition: 1R1G1B
Port Type: HUB75E Brightness: > 1200 Cd / M2
Time Life-span: > 100000 Hours Warranty: 5 Years


Led hoarding board P2.5 Led Module Series indoor




1 . We can provide you with P2.5 led module withFull colors(RGB).

2 . Strict system control and pixel to pixel correction make the image smooth and uniformity.

3 . Able to show a variety of content of video, animation, graphic and so on.

4 . Modular design makes module individual and can fix easily without affecting others.

5 . The product ranges offer a modular indoor display concept that allows the build-up of almost any
shape and size displaying what is ideal for use with large viewing distances.



Technical Parameters:



Parameter:
Model No. P2.5
Pixel Pitch 2.5mm
Module Size 160*80mm
Pixel Density 160000 dot / m2
Pixel composition 1R1G1B
Module Resolution 64*32
The Optimum Viewing Distance 2~20m
The Optimum Viewing Angle H:120° V:120°
Maximum PowerConsumption 600W/m2

Standard Cabinet Size
640mm*640mm
Cabinet Weight 30Kg
Driving Method 1/16 Scan
Frame Frequency ≥60Hz
Refresh Rate ≥180Hz
White Balance Luminance(CDm2) ≥1000CD/m2
Operating Environment Temperature between -20°C and 60°C
Operating Voltage 220V±10%
Grey Scale Display Colors≥65.7trillion
color(Synchronized)
Brightness Adjustment 1024 grades of each
color(R.G.B)can be
adjusted manually
and 16 levels of each color can be adjusted
automatically
Input Signal RF,S-Video,RSBHV,YUV,YC,COMPOSITION
Control System PC+DVI display
card+master card + optical fiber transmission
Average No Failure ≥1000 hours
Time Life-span >100000 hours
Out-of Control rate <0.0002
Transmitting Distance Internet cable:<100m



Features:


1 .160000 pixel dots per square meter resolution
2 . With super-high brightness LED, high contrast
3 . High frame frequency, wider view angel
4 . With module development and distributed scan technology, high reliability
5 . Universal AC input / full range
6 . IP43 protection level, indoor solution
7 . PC synchronous or asynchronous control(optional)
8 . Use common video play software, easy to use
9 . 5 years warranty



Advantages:

1 . Die - casting aluminum cabinet has more accurate tolerance on structure than that made by metalplate processing, which ensures the flatness of the entire LED screen.

2 . light weight less than10 kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.

3 . Adopting the Die - casting aluminum processing, it is high strength, high tenacity, high accuracy and not easy to distort.

4 . Adopting quick locking mechanism on the Up, down, left and right connection. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.

5 . Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.

6 . New structure design, can satisfy hoisting, overstow, indoor used requirements. Cabinet simplification.

7 . Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lightweight and low power consumption, it can reduce the labor cost of installation and operating costs.



Application:

Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.



Packing & Shipping:



Packing:
1 . Standard Export Carton with fully Polyfoam or Pearl Wool
2 . Flight case;
3 . Anti-shaking wooden case



Shipping:

Shipping by sea, by air, EMS; UPS; DHL; FEDEX; TNT etc.

1 . Corrugated Carton Package-- Economic option for fixed installation.
2 . Plywood case--Fix installation--5-9 panels per case as customized
3 . Flight case-- Rental Purpose--5-9 panels per case as customized





P2.5 Ultra Thin Indoor Full Color LED Video Wall Panels For Advertising , 1R1G1B
