P10 High Definition Perimeter LED Display , Football Stadium LED Display IP66 P8 SMD

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Mega
Certification: CE, ROSH
Model Number: P10

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: flight case and wooden case
Delivery Time: 20~25 working days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 5000 Square meter + per month

Detailed Product Description
Name: Perimeter LED Display Pixel Pitch: 10mm
LED Chip: Nationstar Tube Chip Cplor: Full Color
Advantage: Long Lifespan Display Function: Video

High Definition Perimeter LED Display , Football Stadium LED Display IP66 P8 SMD


Quick Detail:


1. 28°support adjustable

2. Waterproof and 5 years warranty

3. High Brightness more than 8000cd/sqm

4. Long lifespan up to 100,000 hours

5. Soft mark used

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION



Stadium Perimeter Series P8 Outdoor Football LED Display Screen Features:


1. New soft mask design.high refresh and high definition.

2. IP65 waterproof,Which is high performance waterproof,dustproof and anti-rust.

3. It can work well for all kinds of outdoor heavy weather,and also suitable for indoor gymnasiums.

4. The panels adopt unique Angle adjustable design,which can be adjusted different panel's Angle (75°~ 90°)according to the use angel of requirements,let all the audience can see the content of the live broadcast.or installation.




1. Outdoor LED Display Technical Parameter

Model No. Mega-P8
Pixel Pitch 8mm
Module Size 256mm ×128mm
Module Resolution(Pixel) 32dots ×16dots
Pixel Density 15,625dots/㎡
LED Type SMD 3535
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode 1/4
Cabinet Size 1024 ×768mm
Cabinet Resolution 128dots ×96dots
Brightness ≥7,000 cd/㎡
Contrast ≥ 4000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Best Viewing Distance 7m
Grey Scale 10bits/1024levels
Color Capability 16,777,216
Color Temperature 5000-9300K
Maximum Power Consumption 900W/㎡
Average Power Consumption 400W/㎡
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85 HZ
Refresh Frequency 240 - 1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System LED studio 10.0
Software LINSN / Nova/ DB-STAR
Waterproof Level IP65
Installation Wall mount, hung and stand structure
Out of Control Rate 0.01 %


2. Outdoor LED Display Module

Module Size (W*H) 256mm *128mm Pixel Configuration 1R1G1B
Pixel Pitch 8mm Resolution (W*H) 32dots *16 dots
Pixel Density 15,625 dots/㎡ LED Type SMD 3535

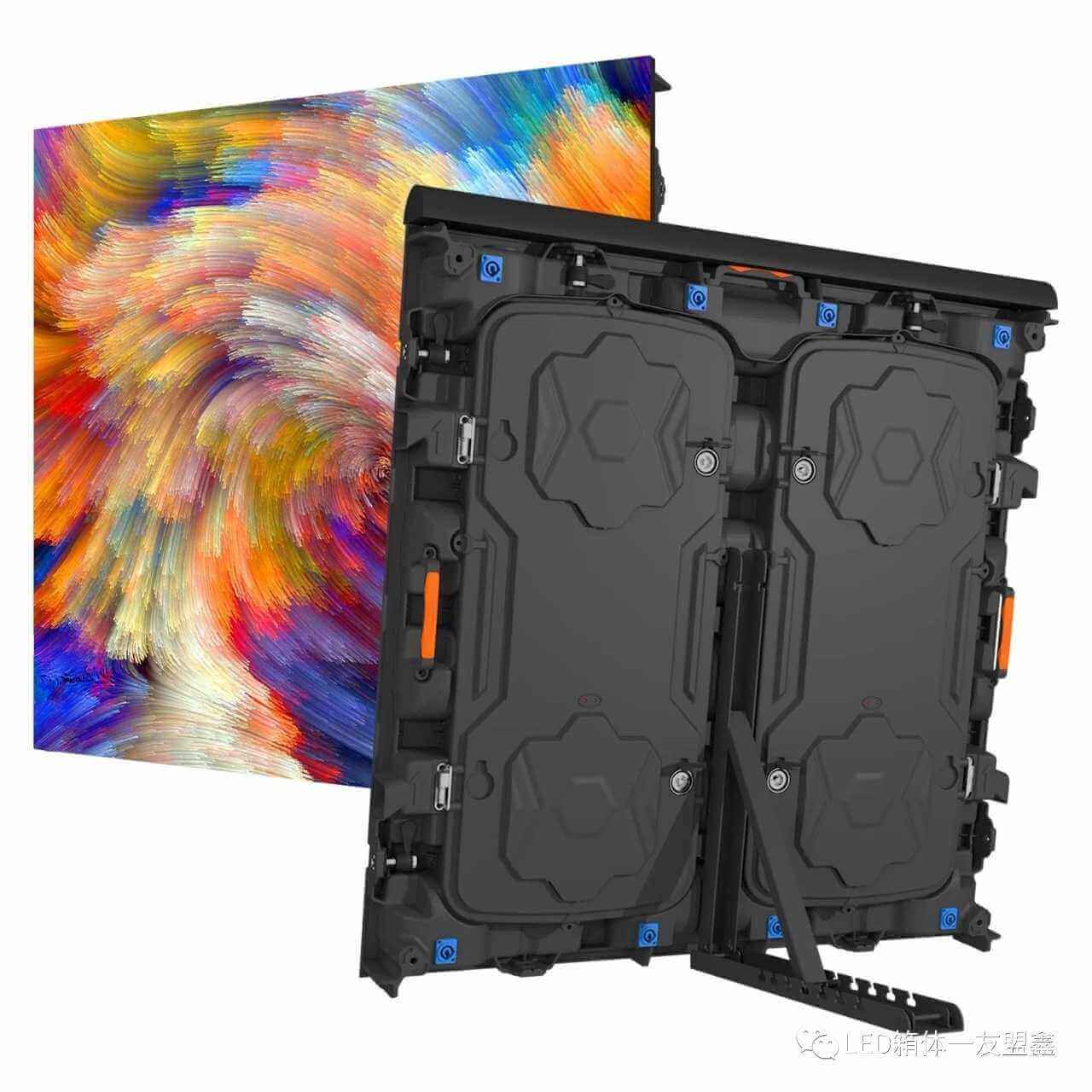

3. Outdoor LED Display Cabinet

Cabinet Size (W*H) 1024mm *768mm Module Qty 24 pcs
Cabinet Resolution (W*H) 128 dots *96 dots Cabinet Pixel 12,288,
Average Power Consumption 400w/㎡ Max Consumption 900W/㎡






Q1. What about the delivery lead time

A: About 22 days after receiving payment.



Q2. How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.



Q3. How to proceed an order?


A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.



Q4. Is it OK to print my logo on the product?


A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5. Do you offer guarantee for the products?


A: Yes, we offer 5 years warranty to our products.

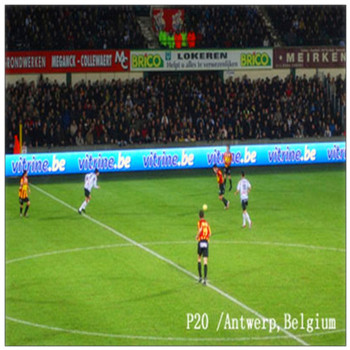

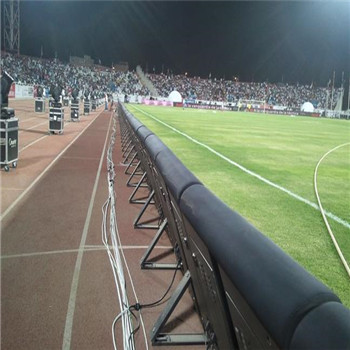

Stadium inside and outside such as football, baseball, basketball match etc.
