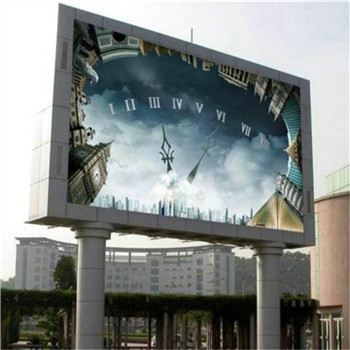

RGB Electronic Advertising Boards , LED Advertising Board Customized Dimension

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Mega
Certification: CE ,ROSH
Model Number: P8mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 15 days after deposit payment arrival
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000SQm/Month

Detailed Product Description
Other Name: Electronic Advertising Boards Materail: Iron Or Aluminum
Feature: High Debugging Brightness Working Voltage: AC100-240V
Cabinet Size: 960mm * 960mm Display Function: Video
Brightness: 6000CD/sqm Refresh Rate: 1920Hz




Product introduct of Electronic Advertising Boards:




1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.


2. Nice appearance and simple structures.


3. Jointed correctly, being installed & dismounted by one person without tool.


4. Humanized operating interface with breakdown indicator lights, easy to maintain.


5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.





Application Area of Electronic Advertising Boards:



public place:bus,subway, train station, airport, book store, park, exhibtion hall, stadium, museum,buildings, highway, school, meeting room, wedding;

Budiness orginazations: supermarket, shopping mall, hotels, restaurant,hospital;

Financial Orginazations: bank, insurance company, stock company, pawnshop;

Entertainment: theater, clubs, bars,KTV, internet bars;





Trade Articles:



1) Trade terms: FOB,CIF,EXW

2) Payment terms: T/T ,Western Union, Paypal, Escrow, Moneygram

3) Payment condition: T/T ,30% deposit before production, 70% balance before delivery

4) Production lead time less 20 sqm: 8-15days, more than 50 sqm:20days. Sample can be deliveried within 3days
5) Shipping: by sea,by air and by express delivery
6) Shipping port: Shenzhen, Mainland China



Detail Specifications of the Outdoor Advertising LED Display P10mm model:



LED Module Pitch/mm PH8
Module size/mm 320 * 160
Density of pixel/(dots/m2) 10000
Pixel composition 1R1G1B
Led encapsulation SMD3535
Resolution of module 32*16
LED Screen Optimum viewing distance 8~100M
View angle H:±120°;V±60°
Average power consumption 300W/sqm
Max power consumption 1000W/sqm
Module quantity 3 * 6pcs
Size of cabinet/mm 960*960
Resolution of cabinet 120*120
Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet 55Kg
Driving method 1/4scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency / Hz/S 600~2000
Brightness 7000cd/m2
Operating temperature –25C°~65C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP65/ IP54
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km
