Rain Proof Large Outdoor LED Signs , LED Commercial Signs Low Power Consumption

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Mega
Certification: CE , ROSH
Model Number: P6mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 15 days after deposit payment arrival
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000SQm/Month

Detailed Product Description
Driving IC: MBI5124 Life Span: 100000H
Working Voltage: AC100-240V Cabinet Size: 960mm * 960mm
Brightness: 6000CD/sqm Refresh Rate: 1920Hz


Professional LED Display Manufacturer

  • Rich experience: Established in 2009
  • Product range: Led screen, Indoor-Outdoor module, Indoor-Outdoor Led display, Fixed and rental Led cabinet
  • Factory enviroment& Employees: more than 2,6000 Square Meters, 300 Plant Workers, 25 Sales Members, 5 talented Engineers, 3 professional QC employees etc
  • Certificates:CCC, CE, FCC, UL etc
Good quality& Great reputation
  • On quality control, it implements strictly under ISO9001:2008,14001 quality certification system, carrying out IQC, IPQC, QC, CFQC, QA quality testing. We provide systematical training for plant workers. Once the raw material up to our warehouse, it will be checked, tested and stored strictly. Moreover, we also pay attention to after-sale and warranty services
  • Guaranteeing batch-to-batch quality, offering professional solutions and being responsible make our company stand out from the competitors
Considerable market share& familiar with various markets
  • More than 3,000 successful cases, business cooperation over 40 countries, annual sales were close to $20 million
Product Advantages:


1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;


2. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle, at this range, no picture change, no color excursion;


3. To pictures and character, have clear, exquisite and real display effect;


4. High intensity and can be adjusted, so can meet the request of the customers according to the

application environment;


5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair



Detail Specifications of the Outdoor Advertising LED Display P6mm model:

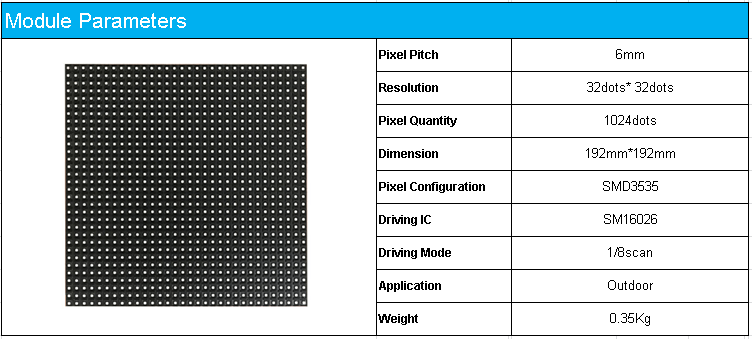

LED Module Pitch/mm PH6
Module size/mm 192*192
Density of pixel/(dots/m2) 27777
Pixel composition 1R1G1B
Led encapsulation 3535 / 2727 SMD 3 in 1
Resolution of module 32*32
LED Screen Optimum viewing distance 5~50M
View angle H:±160°;V±120°
Average power consumption 400W/sqm
Max power consumption 1000W/sqm
Module quantity 5*5pcs

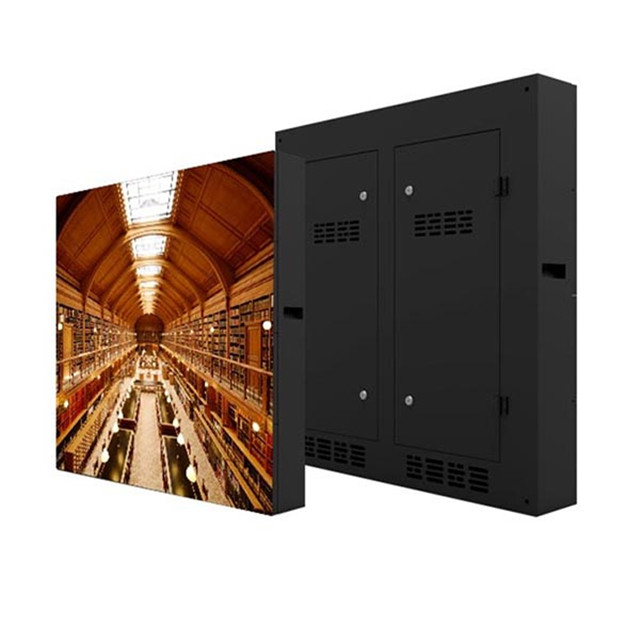

Size of cabinet/mm 960*960
Resolution of cabinet 160*160
Cabinet Material Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet 50Kg
Driving method 1/8scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency / Hz/S 800~2000
Brightness 5500cd/m2
Operating temperature –25C°~65C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP65/ IP54
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km

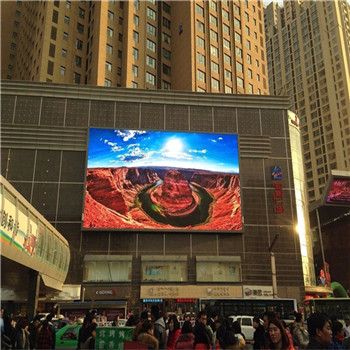

Application Area:

public place:bus,subway, train station, airport, book store, park, exhibtion hall, stadium, museum,buildings, highway, school, meeting room, wedding;

Budiness orginazations: supermarket, shopping mall, hotels, restaurant,hospital;

Financial Orginazations: bank, insurance company, stock company, pawnshop;

Entertainment: theater, clubs, bars,KTV, internet bars;

TAG:flexible video screen

Rain Proof Large Outdoor LED Signs , LED Commercial Signs Low Power Consumption
