Waterproof P4 Full Color Taxi LED Display With 4g / Wifi Wireless Control



Description



Scanning mode: 1 / 4 scanning



Average Power Consumption: 160-200



Control Type: 4G, USB, or WIFI Wireless Control



Screen Dimension: 864*288mm/960*320/1280*320mm



Software(eg.win7,linux): Window xp / Vista / Win7 etc...



Refresh Rate: >360 Hz



Power Input: AC 110-240V 50 / 60Hz



Gross weight	50kgs By size of package
Package size	1120x460x275mm, 1300x25x30mm
Package type	Carton box / wooden case
Package list	Screen, accessories,bracket



Technical Parameters

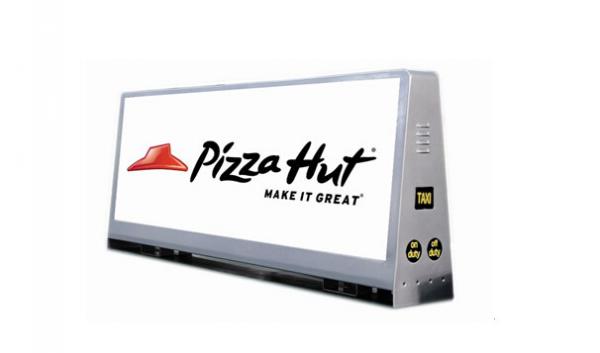

LED Taxi Top Dispaly
Model Number	LTI-1818A	LTI-1818B	LTI-1828A	LTI-1828B
Pixels	4mm	4mm	5mm	5mm
LED Type	SMD2727	SMD3528	SMD2727	SMD3528
Pixel Density	62500	62500	40000	40000
Module Size(mm)	320*320	320*320	320*320	320*320
Module Resolution	80*80	80*80	64*64	64*64
Refresh Frequency	≥ 1200HZ	≥ 1200HZ	≥ 1200HZ	≥ 1200HZ
Usage/Tube Chip	Outdoor/RGB
Cabinet Size	960*320	960*320	960*320	960*320
Average Power Consumption	300-750 (w/sq.m)	300-580 (w/sq.m)	350-700 (w/sq.m)	300-580 (w/sq.m)
Scan Mode	1/4	8/1	1/4	1/8
Net Weight	19kg		27kg
Brightness	≥7000nits	≥3500nits	≥7000nits	≥3500nits
View Angle	H-120 ° V-120 °
Working Temperature :-20 °C~80 °C Life Span:100,000hours IP:65
Control Type	3G/WIFI/USB Memory:4G
Video Format	AVI/WMV/MPG/MOV/DAT/VOB/MP4/FLV
MTBF	10,000hours



Advantages



>> Dual sided in brilliant 4mm,4.8mm,5mm and 6mm resolution assure your advertising contents delivered in unforgettable impact.



>>Access with 3G/4Gmanagement system,

You’ll feed ads remotely to one or dozens of taxi top displays in your fleet.



>>Build in GPS module; you can design GPS based advertising map zones, so you can target specific ads to outdoor viewers in selected parts of a city.



>>Lightweight aluminum enclosure will not give trouble for the car battery.



>>Aerodynamics design will greatly reduce the wind resistant and even driving in highway, you will feel dragging the car.



>>Two sides indicators will display correctly for the taxi working status in busy or free.



>>4G build in memory allows repeating display unlimited numbers of advertisements.



>>Displays are powered directly through the vehicle’s 12V DC power system.



Relevant Accessories



1. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.



2. What is Drive Method, driving IC and Power supply

Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.



We use shanghai xixun Y card which can support 3G/4G/WIFI/ on line edit and publish the programe with the local 3G card.



4. We need GPS inside to check where the unit is and to tracking every cars from our fleet

We have GPS system to check the unit tracker.
