Adversting Full HD LED TV , Front maintenance, magnetic enclosure, nanotechnology

Product Details:

Place of Origin: China
Brand Name: Mega
Certification: CE/ROHS/FCC/SGS
Model Number: P1.25 .P1.875.P2 ,P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton or wooden packing Flight case
Delivery Time: 7works days
Payment Terms: T/T; WU, LC
Supply Ability: 5000 square per month
Detailed Product Description
Tube Chip Color: Full Color Unit Size: 500mmx500mm 600mm * 337.5mm
Unit Weight: 5Kg Working Voltage: AC 100-240V
Referesh Rate: 3840Hz LED Chip: SMD1010
Brightness: 800CD/sqm Grey Scale: 16 Bits





Adversting HD LED Display , RGB LED Display High Definition Cost Effective






Pixel Pitch: PH: 1.25mm , PH: 1.44mm , PH: 1.5625mm , PH1.875mm


Cabinet Size: 600 x 337.5 x 80mm

1. Locating slot work with dowel pin to ensure good flatness
2. 16bit gray scale processing, color expression more naturally
3. Gapless installation, wider viewing angle, good color uniformity
4. Soft images,green and environmental protection
5. High refresh rate, remove ghost without trailing





Detail Specifications of the P1.875mm HD LED Display:



Pixel Configuration SMD1010
Pixel pitch(mm) 1.875mm
Pixel density(dots/m2) 284444
Module resolution(W×H) 160×90
Module size (mm) 300(W)×168.75(H)
Module weight (kg) 0.8
Maximum power consumption of the module(W) 40
Module of cabinet (W×H) 2×2
Cabinet resolution(W×H) 320×180
Cabinet size (mm) 600(W)×337.5(H)×80(D)
Cabinet area(m2) 0.2
Cabinet weight (kg) 9.7
Cabinet level up degree(mm) ≤0.2
Maintenance mode Front/Rear
Cabinet raw material Die-casting aluminum
Single-point brightness correction YES
Single - point color correction YES
White Balance Brightness (nits) ≥800(6500K)
Color Temperature (K) 3200—9300 (adjustable)
Viewing Angle (Horizontal / Vertical) 160/160
Deviation of center distance of light - emitting <3%
Brightness / chromaticity uniformity ≥97%
Contrast 4000:1
Peak power consumption (W / m2) 800
Average power consumption (W / m2) 250
Power supply requirements AC90~264V,frequency 47-63(Hz)
Frame rate (Hz) 50&60
Drive mode Constant drive,1/27
Grayscale level 65536
Refresh rate (Hz) ≥3840
Number of color processing bits 16bit
Video playback capabilities 2KHD,4KHD
Operating temperature / humidity range (℃ / RH) -20 – 60 / 10%-85%RH
Storage temperature / humidity range (℃ / RH) -20 – 60 / 10%-85%RH
Applicable standards CCC,CE,RHos

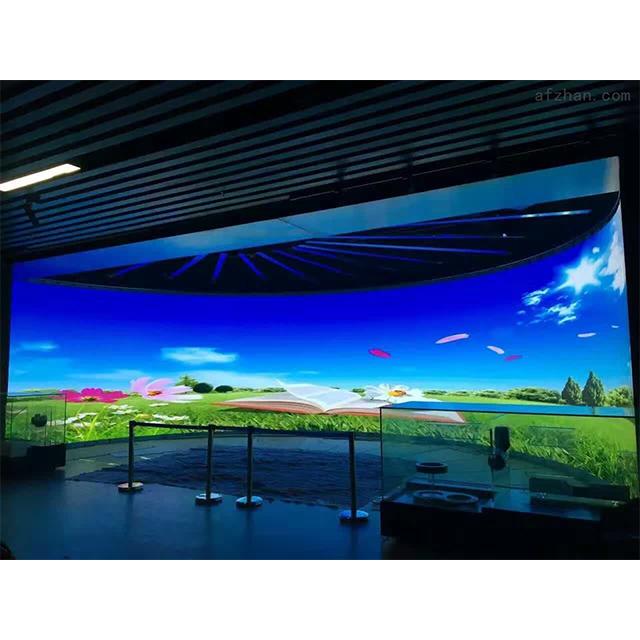

Application of HD LED Display:


Mega LED indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 600 x 337.5mm, Die-casting aluminum structure with high precision and cooling effect.





High definition display
It delivers a truly amazing pciture in every details with extrodinary pixels producing an image that is HD quality in an LED screen

Ultra wide angle of view
Ultra wide angle of view,from any perspective images are clear natural,to experience the great subversive viewing experience



Natural Color
16bits Gray processing techology,with 65536 grayscale,excessive nature,according to the video picture of extremely fine texture,looked more comfortable.



16:9 Design and Good Uniformity

16:9 design. Cabinet's 16:9 resolution is specialized for command center. Perfect replacement for LCD display.
Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.

Top-lever brightness control
Expansion of brightness adjustment range increase the brightness and contrast ratio of picture. This function can fully perform delicate change of brightness,so it can present a vivid clear picture to audience.
