Vios P8mm Front Service LED Display Nationstar SMD 5050 Front Access Openning

Product Details:

Place of Origin: China
Brand Name: Vios
Certification: UL CE ROHS ISO2000 ETL SGS SAA Fcc EMC
Model Number: P8mm SMD RGB Front service led panel

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece or 1 square meter
Price: Negotiation (Good price)
Packaging Details: Carton box or Wooden case / Flight case
Delivery Time: 1-3 working days
Payment Terms: L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA, MasterCard
Supply Ability: 50,000 square meters per month

Detailed Product Description
Brightness: More Than 8500nits Waterproof: Outdoor IP68
LED Chips: Cree / Nichia / Epistar / Opto / Nationstar LED Control System: Nova / Linsn / Colorlight / DBstar / Lumen/ Listen/ Onbon/ TF/ HD Card
Power Supply: Meanwell / YHY / G-Energy / CZCL Drive IC: MBI5024 / MBI5026 / MBI5041 / MBI5151 / MBI5152 / MBI5153
LED Screen Material: Aluminum / Iron / Steel Pitch Pixels: P3/P4/P5/P6/P6.25/P6.67/P8/P10/P12/P16/P20/P25/P31.25/P37.5mm
Input Voltage: DC5V Or AC110V - AC240V Display Function: Full Color Video




  1. High resolution with nice video effect
  2. High definition, seamless and flatness
  3. High definition, good uniformity
  4. Module Size: 256mm*128mm
  5. Cabinet Size: 1280mm*1280m
  6. Outdoor Front Opening led display screen Product Features:

1. High resolution 62500pixels/sqm, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the high brightness, high definition, seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span
4. Wide viewing distance, high definition, good uniformity
5. Brightness can be adjusted automatically according to different surroundings by led software
6. Can be set to open and close the screen automatically by led card
7. Can be mounted on the wall, by pole support on the street, on top of building, etc
8. Support all types of video, graphics, animation, message, etc, support PC online or offline control, also can remote control with asynchronous system, or Wifi control, 3G control.
9. Widely used for outdoor commercial advertising, shopping mall advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.

PH8mm front access Openning high brightness led display Nationstar SMD 5050


PH8mm front access Openning high brightness led display Nationstar SMD 5050


P8mm SMD 3535 320x320mm Outdoor Front Accessed LED Module Features:

1. Front Service LED Module Design,40X40 dots for Each LED Display Panel.
2. Led Screen with high brightness: ≥7000 nits shows normally under strongbright sunlight.
3. Good Quality led chip with low led attenuation,best color uniformity, low default rate and long lifespan.
4. Totally Waterproof of IP65 rating testing before shipment which ensure led display screen work well under heavy Raining environment.
5. Good resistance to deformation with high hardness panel body,thickness: 135mm.Excellent windy, corrosion resistance function after surface treatment.

6. Installation become easily and more fasten. with SMD, perfect solution for semi-outdoor advertising LED screen and outdoorrental led screen.


P8mm SMD3535 Front Maintenance led display module Specifications:



1. IP65 SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.

2. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

3. Delivery time: Deliver in 24 hours after received the payment.
4. Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
5. Shipping method: Ship the led display module by DHL, UPS, Fedex and EMS.
6. Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.


Model UNIT-P8-320X320-S
PH8mm front access Openning high brightness led display Nationstar SMD 5050
Color Package Intensity View Angle Wavelength Test Cond.
Red SMD 3535 750mcd 140/140 620nm 25℃,20mA
Green SMD 3535 2100mcd 140/140 520nm 25℃,20mA
Blue SMD 3535 530mcd 140/140 470nm 25℃,20mA
2.LED Module
Resolution 40(H)×40(V)
Pitch 8mm
Density 15625 pixels/㎡
LED Arrangement SMD3535
Driver Mode Dynamic 1/4 Duty constant current
Size 320mm×320mm
Mask Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness ≥6500cd/㎡
View Angle 140 degree ( horizontal) 140degree(vertical)
View Distance 8m-80m
Gray Scale 14bits input, correction with 16bits
Display Color 16.7M
Brightness Adjustment 100 levels
Power Supply
Operation Power AC100-240V 50-60HZ Switch-able
Maxim Power Consumption 800 W/m2
Average Power Consumption 400 W/m2
Control System
Correction Scale Level 16bits
Frame Update Frequency 60Hz
Screen Refresh Frequency 480-1920Hz
Gamma Correction -5.0—5.0
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Support VGA Mode 800×600,1024×768,1280×1024,1600×1200
Color Temperature 5000-9300 adjustable
Brightness Correction dot by dot, module by module, cabinet by cabinet
Operating Temp. -20-60 Celsius degree
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥48 hours
Protection Level IP65 Waterproof Outdoor
Out of Control Pixel Rate 0.01%

Vios P8mm Front Service LED Display Nationstar SMD 5050 Front Access Openning

Why Choose front service led display Panel ?

1. Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.which just need less than one minute to take out from the led display panel when for maintenance,saving the labor and maintenance cost.

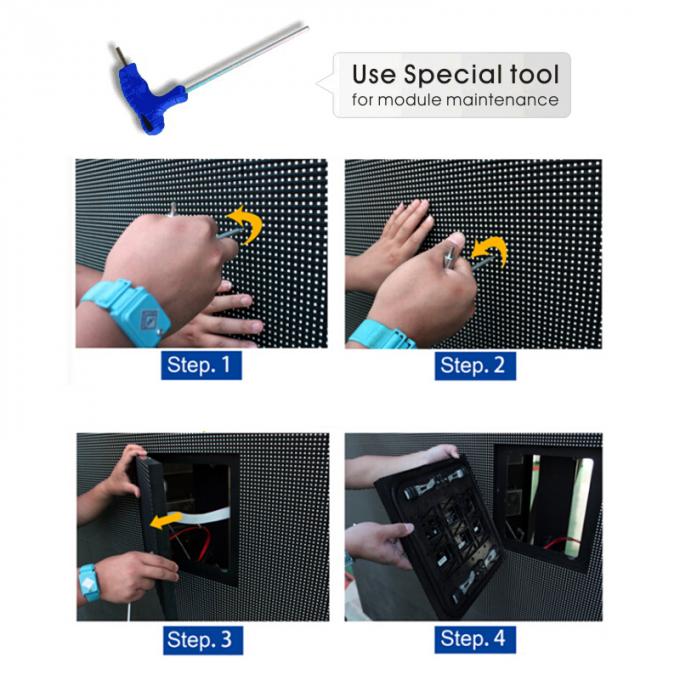

2. Easy Maintenance, easy to take the modules with a 2.5mm hexagonal screwdriver,No screws, Just need to take out two fastening screws from the module, we can do the replacing easily. Which will save nearly 50% maintenance labor and time.


3. Reasonable PCB design, reliable and long life time,New plastic cover with new mold, smaller module gaps and better screen

flatness.Excellent Waterproof structure design.


4. Cabinet with high hardness and pannel's flatness and Internal thread way make it looks more simple. Any cabinet size can be customized according to actual requirement.While Traditional led display need to take maintenance room into consideration, however front service led display panel solution will less your worry on these problems.


PH8mm front access Openning high brightness led display Nationstar SMD 5050PH8mm front access Openning high brightness led display Nationstar SMD 5050
