Rental Round LED Screen , Flexible LED Curtain Display Seamless Splicing Smooth Picture

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Mega
Certification: CCC, CE, ROHS
Model Number: Indoor P4.81mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotation
Packaging Details: flight case ( road case ) ; export wooden case
Delivery Time: 15 ~ 25 working days
Payment Terms: T/T , Western Union , MoneyGram
Supply Ability: 1000Sqm / Month

Detailed Product Description
Usage: Intdoor Materail: Aluminum
Average Power Consumption: 600W/sqm Working Vlotage: AC 100V - 240V
Refresh Rate: 3840 Cabinet Material: Die-casting Aluminum Cabinet


Rental Round LED Screen , Flexible LED Curtain Display Seamless Splicing Smooth Picture





This series products are widely applied to stage show, concert, TV station, Brand presentation, stadium display screen and so on



Indoor slim rental P3.91, P4.81, P5.68, P5.95, P6.25, P8.928mm models (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 500mm)
LED Module Pitch/mm PH3.91 PH4.81 PH5.68 PH5.95 PH6.25 PH8.928
Module size/mm 250*250 250*250 250*250 250*250 250*250 250*250
Density of pixel/(dots/m2) 65536 43264 30976 28224 25600 12544
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Led encapsulation SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
Resolution of module 64*64 52*52 44*44 42*42 40*40 28*28
LED Screen Optimum viewing distance 3~38M 3~38M 4~40M 4~40M 5~45M 7~50M
View angle H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120° H:±160°;V±120°
Average power consumption 600W/sqm 600W/sqm 400W/sqm 400W/sqm 300W/sqm 300W/sqm
Max power consumption 1600W/sqm 1600W/sqm 1000W/sqm 1000W/sqm 900W/sqm 700W/sqm
Module quantity 2* 2pcs
Size of cabinet/mm 500*500
Resolution of cabinet 128*128 104*104 88*88 84*84 80*80 56*56
Cabinet Material die-casting aluminum cabinet
Weight of cabinet 7.5Kg
Driving method 1/16 scan constant current 1/13 scan constant current 1/11 scan constant current 1/7 scan constant current 1/10 scan constant current 1/7 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency/ Hz/S 800~2000
Brightness 1500cd/m2 2000cd/m2 1500cd/m2 1500cd/m2 1500cd/m2 2500cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP54/ IP43
Working vlotage AC220V / AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system linsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km





Description:



1.Super Light and Thin

8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.

2.High Refresh Rate
Refresh Rate≥3840, offering impressive visual effect.

3.Noiseless
Free of fans and air conditions, excluding noise and reducing power consumption.

4.Fine and Smooth Picture
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.

5.Seamless Splicing
High conformity of picture without gap and information missing, realizing a seamless splicing display.

6.Fast Installation and Dismantlement.





Packaging & Shipping

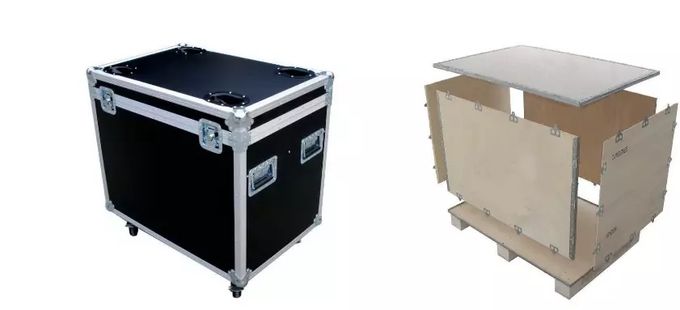

We can use fly case or wooden case to pack the goods
