Place of Origin: | Shenzhen, China |
Brand Name: | Mega |
Certification: | CCC, CE, ROHS |
Model Number: | P10mm |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Flight case, export wooden case |
Delivery Time: | 10-20 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000sqm/month |
Usage: | Outdoor | Meterial: | Iron |
---|---|---|---|
Cabinet Size: | 960mm * 960mm | Refresh Rate: | 3840 |
Module Size: | 320mm * 160mm | Working Voltage: | AC 100 ~ 240V |

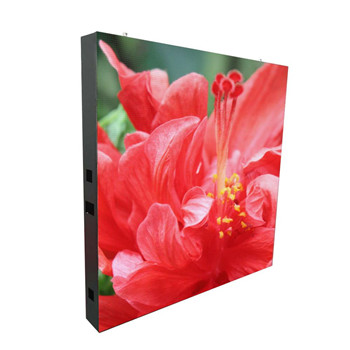

P10 Digital LED Sign Board , Outdoor Advertising LED Display Hanging Up Installation
Main features of Mega HD LED screen:
1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment extremely well
7. Light, ultra-thin display cabinet's total weight is only 35kg.
8. Standard cabinet size is 960mm * 960mm.
9. Dustproof design, the screen is rated IP65.
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
Product Specifications:
Parameter | Value | |
Physical Parameter | Pixel Configuration | 1R1G1B |
Pixel Pitch (mm) | 10 | |
Pixel Matrix per m2 (dots) | 10000 | |
Pixel Matrix per Module | 32*16 | |
Pixel Matrix per Panel | 96*96 | |
Module Dimensions (L*W) / (mm) | 320*160 | |
Module Quality per Cabinet | 3*6 | |
Panel Dimension (L*W) / (mm) | 960*960 | |
Panel Material | Aluminum | |
Panel Weight (Kg) | 35 | |
Electronic Parameter | Color Grayscale (Bit) | 16 |
Gray Scale per Color (Level) | 16384 | |
Refresh Rate (Hz) | 1280 | |
Driving Type | 1/4 | |
Frame Frequency (Hz) | 50/60 | |
Signal Transmission Distance (m) | CAT5 cable:<100m;Single mode fiber:<10km | |
Optical Parameter | Brightness (cd/m2) | ≥6500 |
Color Temperature (K) | 6500-7500 | |
Color Contrast | 4000:1 | |
Optimal Horizontal Viewing Angle (°) | 160 | |
Optimal Vertical Viewing Angle | 160 | |
Electrical Parameter | AC Input Voltage (V) | 100~240 |
AC Input Frequency (Hz) | 50/60 | |
AC Input Power Maximum Value (W/m2) | 1200 | |
AC Input Power Typical Value (W/m2) | 400 | |
Circumstance Parameter | Storage Temperature (℃) | -40~+60 |
Operating Temperature (℃) | -20~+50 | |
Storage Humidity (RH) | 10%~90% | |
Operating Humidity (RH) | 10%~90% | |
IP Rating (Front / Rear) | IP65 / IP63 | |
Lifrtime Typical Value (Hrs) | 100,000 | |
Installation type | Cabinet Installation Type | Fixed |
Maximum Number of Panel for Lifting | 6 |
