Nationastar Chip Stage LED Display Screen Aluminum Material 100000Hs Life Span

roduct Details:

Place of Origin: SHENZHEN , CHINA
Brand Name: Mega
Certification: CE ROHS
Model Number: P3.91mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotioation
Price: Negotiation
Packaging Details: Flight Case & Wooden Case
Delivery Time: 15 ~ 20 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 square meter per month
Detailed Product Description
Other Name: RGB Stage Background LED Display Panel Size: 500mm * 500mm
Function: Video, Flash, Text Display Life Span: 100000Hs
Material: Aluminum Unit Weight: 7Kg

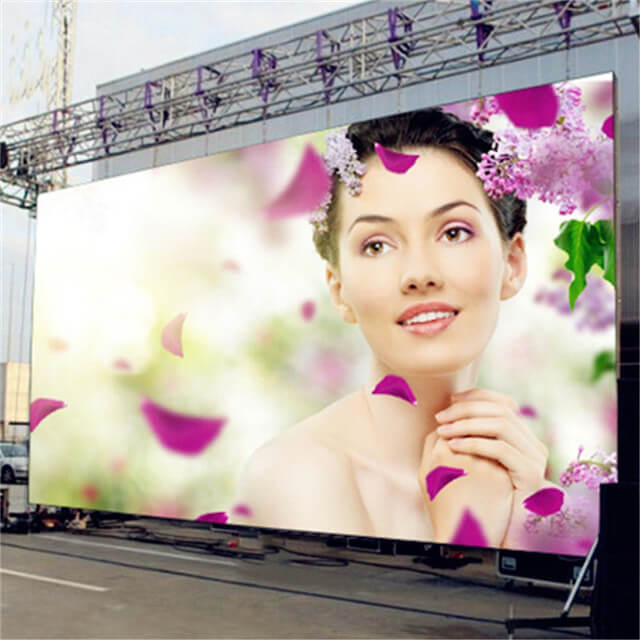

Stage LED Display Screen With Nationastar LED And Die Cast Aluminum Slim Rental Cabinet



Product features of RGB Stage LED Display:


1. High quality LED chip and high anti-static electricity capacity.


2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 5000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.



Specification of RGB Stage LED Display:


outdoor slim rental P3.91mm LED screen (unit module size: 250mm * 250mm and unit cabinet size: 500mm * 1000mm)
LED Module Pitch/mm P3.91
Module size/mm 250*250
Density of pixel/(dots/m2) 65536
Pixel composition 1R1G1B
Led encapsulation SMD1921 3 IN 1
Resolution of module 64*64
LED Screen Optimum viewing distance 3~38M
View angle H:±160°;V±120°
Average power consumption 300W/sqm
Max power consumption 800W/sqm
Module quantity 2* 2pcs
Size of cabinet/mm 500*500
Resolution of cabinet 128*128
Cabinet Material die-casting aluminum cabinet
Weight of cabinet 7Kg
Driving method 1/16 scan constant current
Frame frequency / Hz/S ≥60
Refresh frequency/ Hz/S 3840
Brightness 4000cd/m2
Operating temperature –20C°~60C°
Storage temperature –40C°~70C°
Operation humidity 10%-90%
Storage humidity 10%-90%
IP Rrating (Front/Rear) IP65
Working vlotage AC110V ±10%
Grey scale/color depth displaying colors≥16.7M(synchronized); 14bits
Brightness adjustment 256 levels of each color(manually)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Novastar
Average of non-failure life ≥50,00h
Life span ≥100,000h
Functionaless dot rate ≤0.0001
Control distance CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km



Supply Ability of RGB Stage LED Display :


5000 Square Meter/Square Meters per Month
